PURSE RING

C1

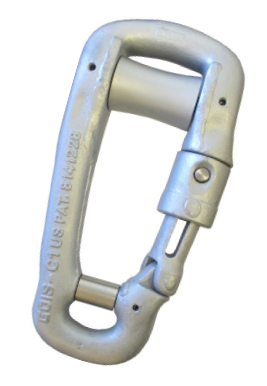

GOIS C1

DOUBLE ROLLER PURSE RING WITH SECURE PUSH-BUTTON LOCK

  • WEIGHT: 16.5 LBS / 7.48 KILOS
  • WORKING LOAD: 18,200 LBS / 8,256 KILOS
Specification

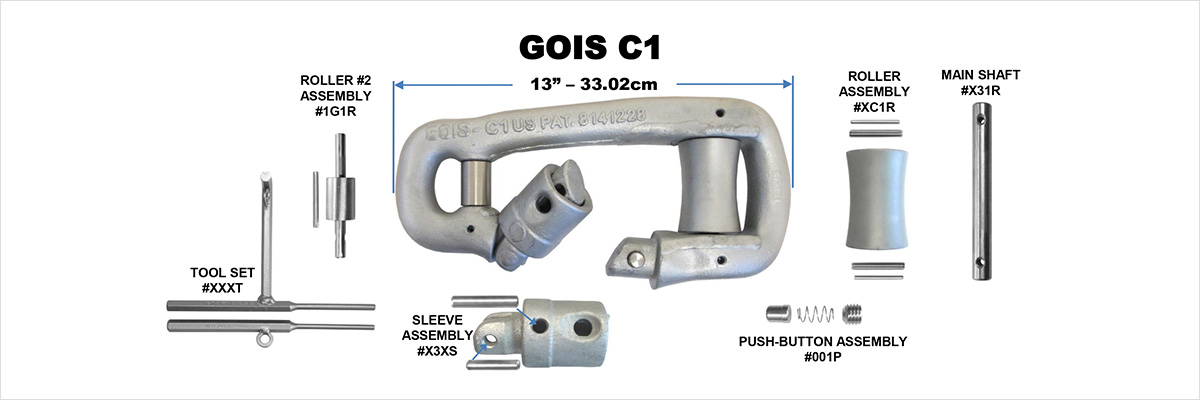

SPARE PARTS LIST C1

Item Part No. Weight
Main Roller Assy. XC1R 1.96 lbs / .89 kilos
Main Shaft X31R .48 lbs / .22 kilos
Sleeve Assy. X3XS 1.82 lbs / .83 kilos
Roller #2 1G1R .40 lbs / .18 kilos
Push Button Assy. 001P .06 lbs / .027 kilos
Tool Set XXXT .47 lbs / .213 kilos
ALL RING FRAMES ARE HOT DIP GALVANIZED AND
STAINLESS STEEL HARDFACED
TO PREVENT CORROSION AND WEAR
