GOIS A3

DOUBLE ROLLER PURSE RING WITH SECURE PUSH-BUTTON LOCK

  • WEIGHT: 15.4 LBS / 6.98 KILOS
  • WORKING LOAD: 18,600 LBS / 8,437 KILOS
Specification

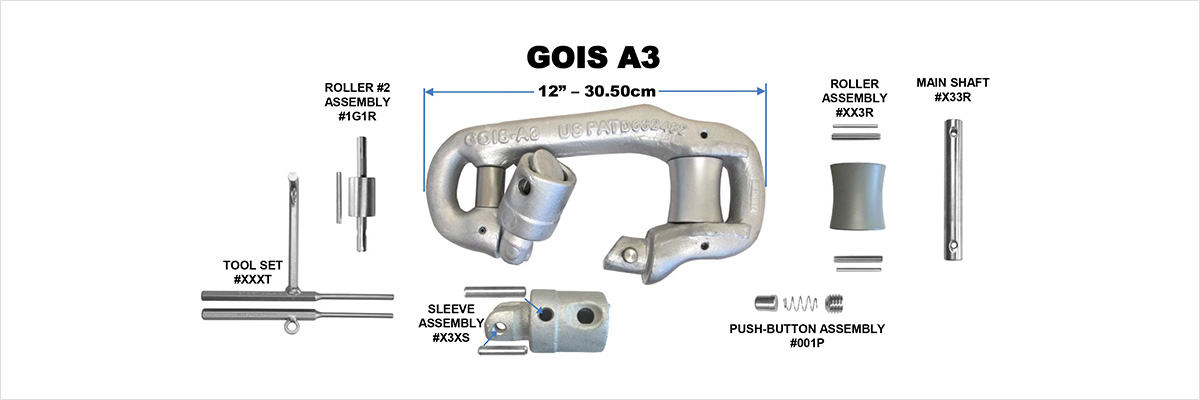

SPARE PARTS LIST A3

Item Part No. Weight
Main Roller Assy. XX3R 1.54 lbs /.70 kilos
Main Shaft X33R .39 lbs/.176 kilos
Sleeve Assy. X3XS 1.82 lbs/.83 kilos
Roller #2 1G1R .40 lbs/.18 kilos
Push Button Assy. 001P .06 lbs /.027 kilos
Tool Set XXXT .47 lbs / 213 kilos
ALL RING FRAMES ARE HOT DIP GALVANIZED AND
STAINLESS STEEL HARDFACED
TO PREVENT CORROSION AND WEAR
